D50x2mm Precitec OG Y D50 d2 protective window
Main role is to block debris splash, to prevent spatter injury laser focus lens.
Both sides plated high damage threshold (>15J/cm2) antireflection coating to reduce reflections.
| D50x2mm laser protective window Parameters | |
|---|---|
| Material | Fused Silica |

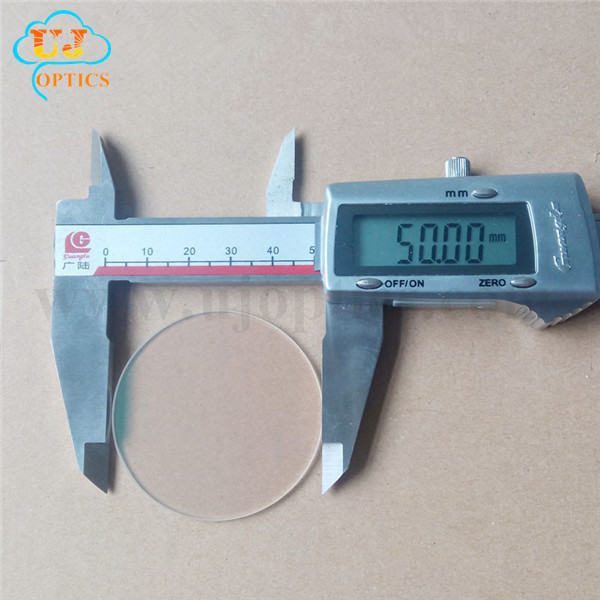

| Lens Diameter | 50mm ±0.1mm |

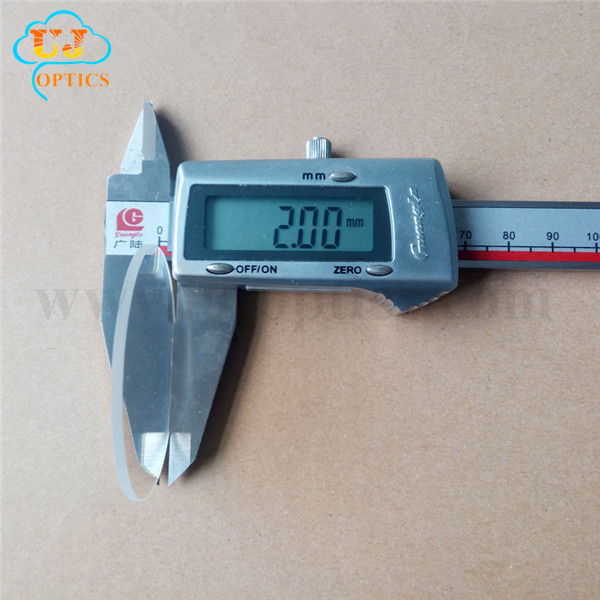

| Edge Thickness | 2mm ±0.1mm |
| Laser type | 1064nm (BBAR 1020nm-1080nm) |
| Optical Coating | Both sides AR/AR@1064nm(1020nm-1080nm) |
| Application | YAG/Fiber laser cutting/welding/Cladding machines |
| Laser power | 500w-6000w |
Applicable machines including domestic and international brands,
including AMADA, Bystronic, Highyag, IPG, Mazak, Precitec, Prima, TRUMPF
DNE, Empower, Raytools, Friendess, Hans, Miyachi, LVD, Everbright, stars, LaserValley, U.W. Laser, Aohua, Chutian
Used for laser welding equipment, cutting equipment application, can protect the focusing lens from damage.
Please tell us the material, size, laser power, application before quote.
