DETAILS

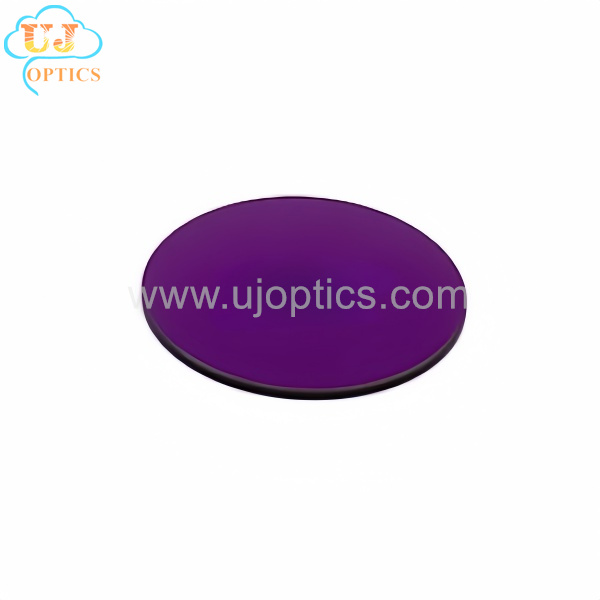

BP355nm Band Pass Filter
355nm ultraviolet narrow-band filter is a coating product made of ultraviolet glass zwb1 glass, which is completed by optical ultraviolet film material, ion assisted coating, double-sided coating and other processes. Used for optical instruments, medical instruments, metallurgy, finance, photographic equipment, aviation, aerospace, instruments, military, scientific research, optical instruments, medical equipment and testing instruments.
Item | Parameters |
Product name | BP355nm Band Pass Filter |
Model number | BP355nm |
Description | High Reflection Filters |
Process | IAD Hard Coating |

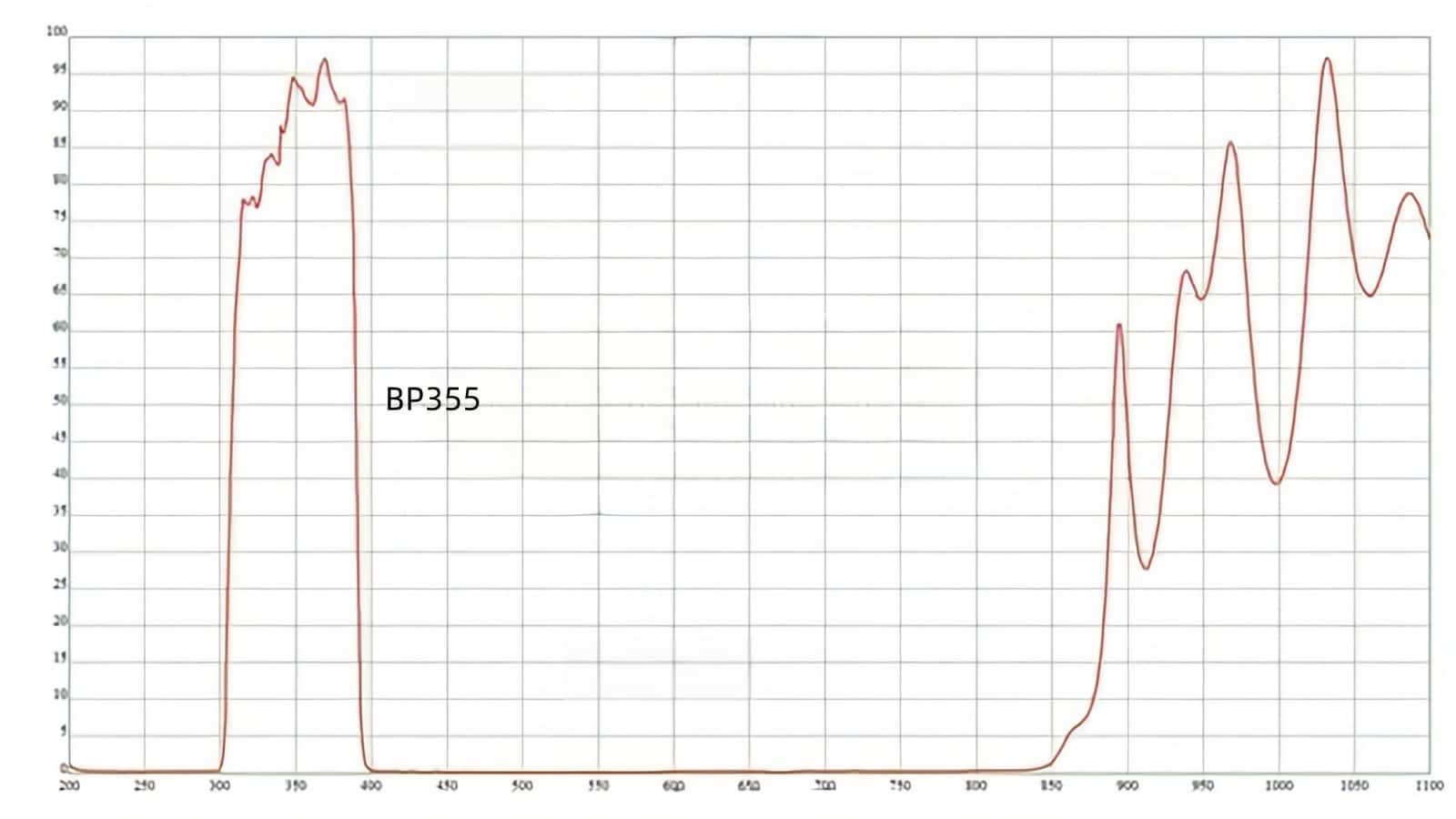

CWL | 355±5nm |
FWHM | 20nm |
Transmittance | T>60% |
Cut off rate: | OD4 200-1100nm |
Row material | BK7 or Corning gorilla glass or other optical glass |
Surface quality(S/D) | 60/40 or better |
Dimension/Round Size | D12x6mm D15x5mm |
Dimension/Square size | 80x80x1mm |
