BP420nm Band Pass Filter
| Item | Parameters |
| Product name | BP420nm Band Pass Filter |
| Model number | BP420nm |
| Description | High Reflection Filters |
| Process | IAD Hard Coating |

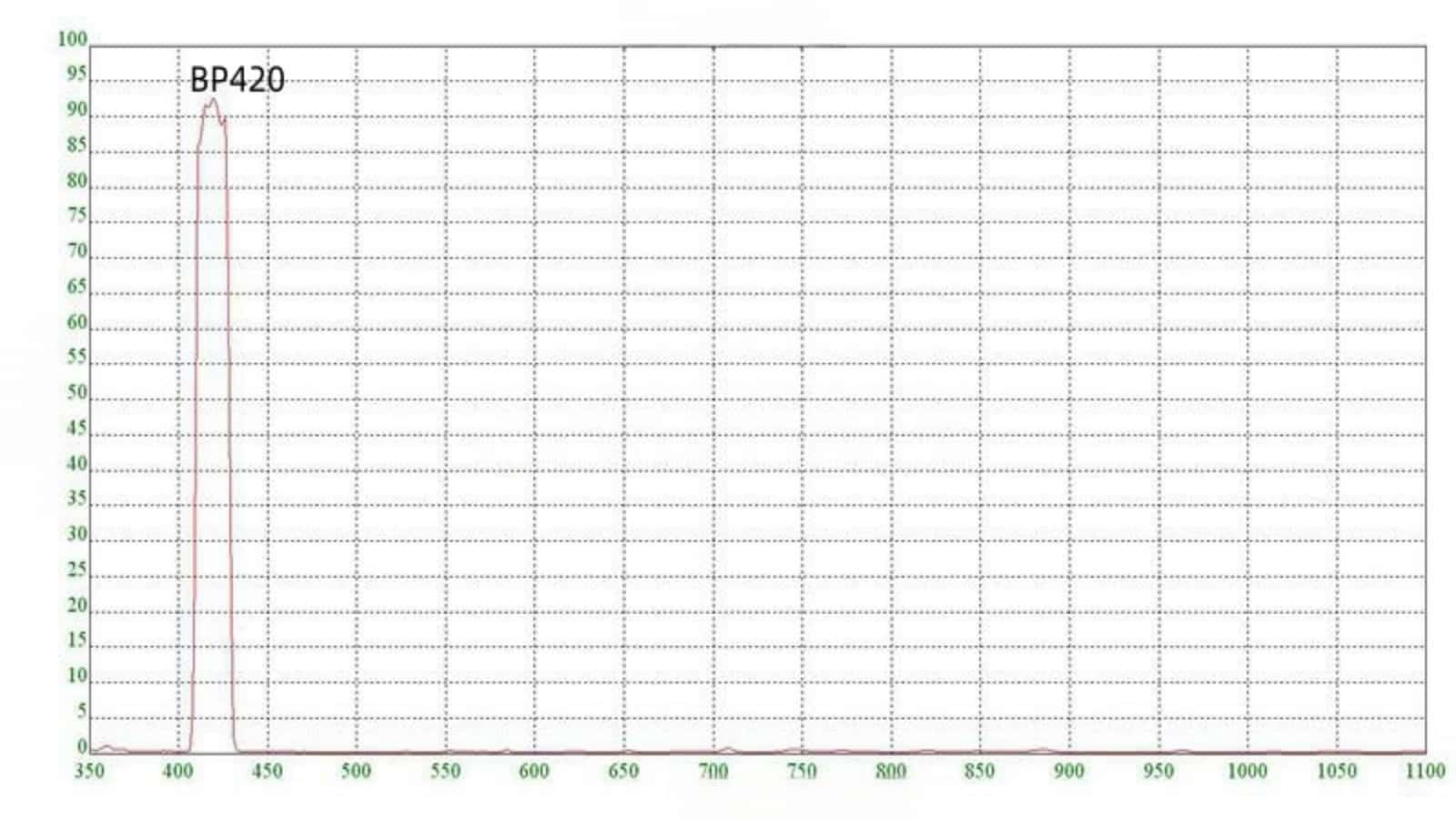

| CWL | 420±5nm |
| FWHM | 20nm |
| Transmittance | T＞60% |
| Cut off rate: | OD4 200-1100nm |
| Row material | BK7 or Corning gorilla glass or other optical glass |
| Surface quality（S/D） | 60/40 or better |
| Dimension/Round Size | D12x6mm D15x5mm |
| Dimension/Square size | 80x80x1mm |
