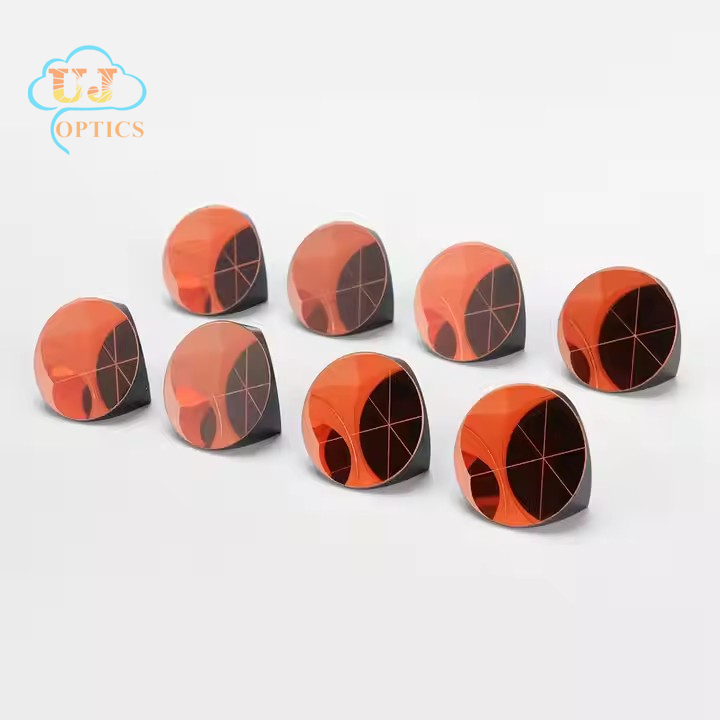

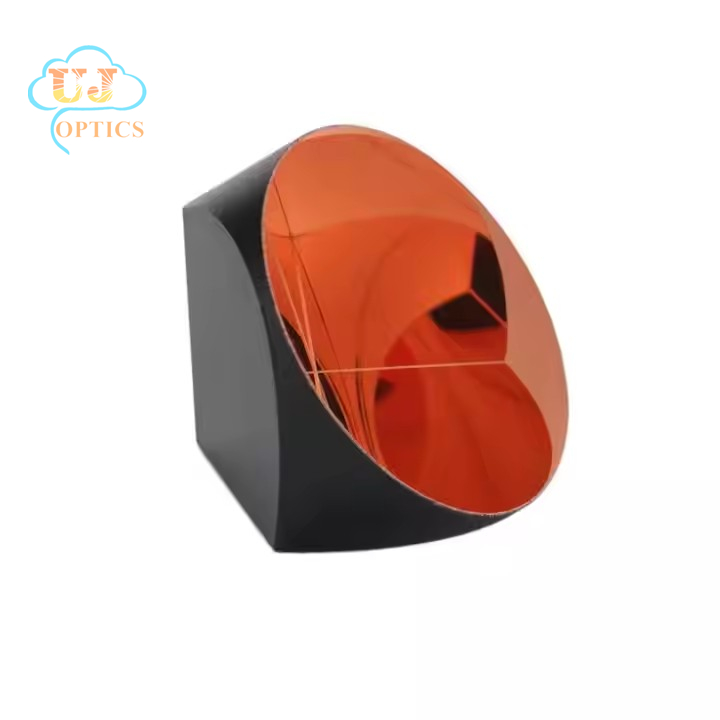

High-precision coated copper coated aluminum coated silver corner cube for Total Station

    D12.7mm   H9.5mm      60/40    180°±3′
    D25.4mm   H19mm       60/40    180°±3′
    D38.1mm   H28mm       60/40    180°±3′
    D50.8mm   H43.5mm    60/40    180°±3′
    D64mm      H48mm       60/40    180°±3′
DETAILS


Corner cube prism

A corner cube prism, also known as a retroreflector, a CCR, or a trihedral prism, is an optical prism  that sends an incoming beam

of light directly towards its point of origin while translating it spatially. It does this regardless of the angle of entry, which makes it

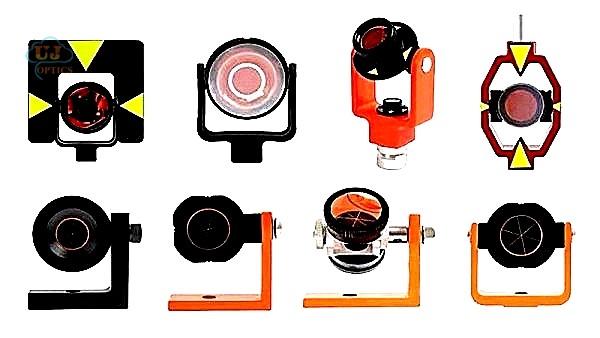

very useful for applications in spectroscopy, satellites, or battlefield technology. Corner cube prisms are also used in land surveying,

laser resonator cavities, electronic distance measurement, and space vessel docking.

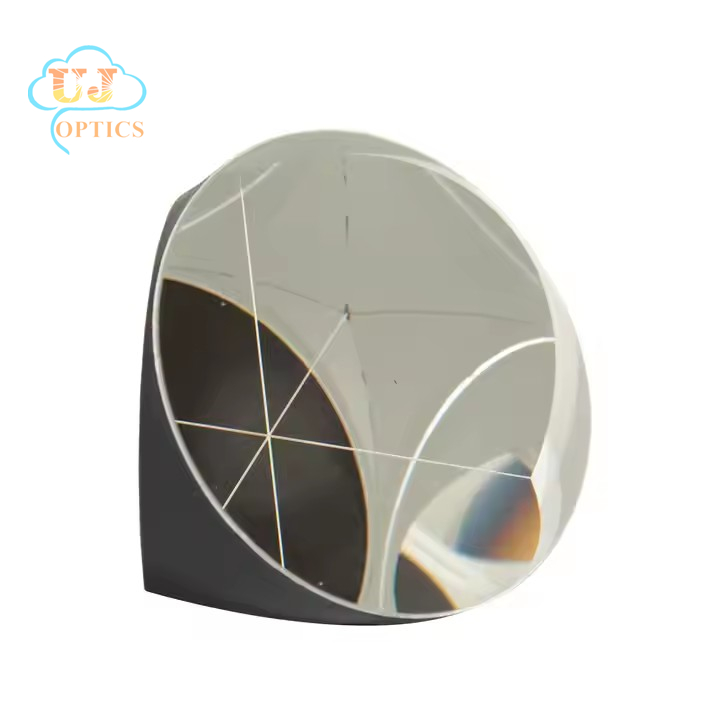

Corner Cube Prism.jpg

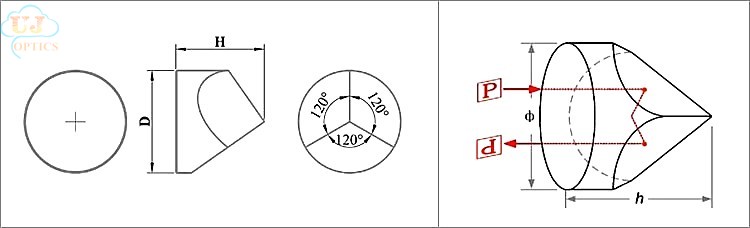

Parameters for corner cube prism
Product Name                        corner cube prism
Dimensions0.2-300mm
Dimensional Tolerance±0.1mm
MaterialBK7  Fused Silica
Surface quality60/40 or better
Surface Flatnessλ/4@632.8nm
Beam angle accuracy180°±3′
Clear aperture90%
Chamfer<0.25mm×45°
CoatingUncoated, or customized

Applications of corner cube prisms

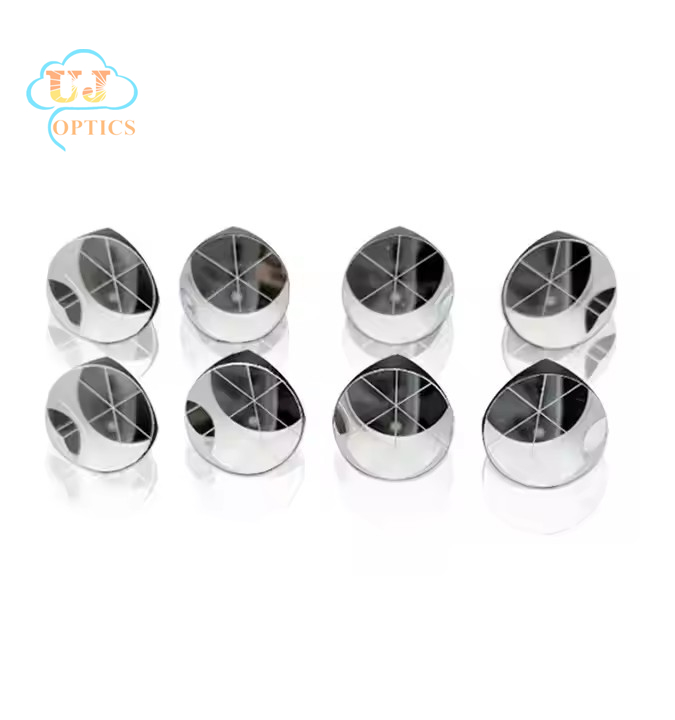

10 Transparent Corner Cube Prism_副本.jpg
