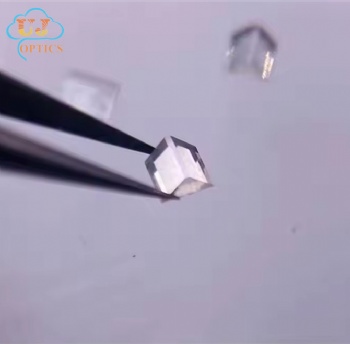

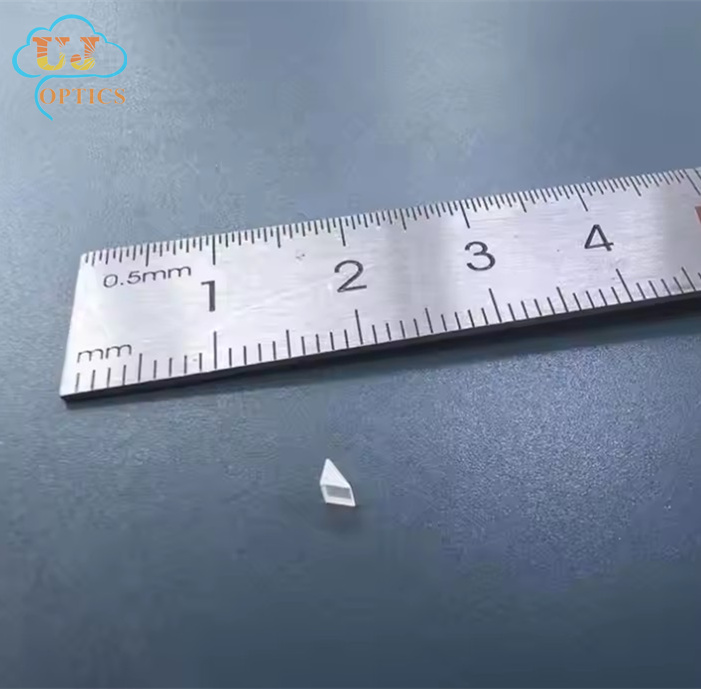

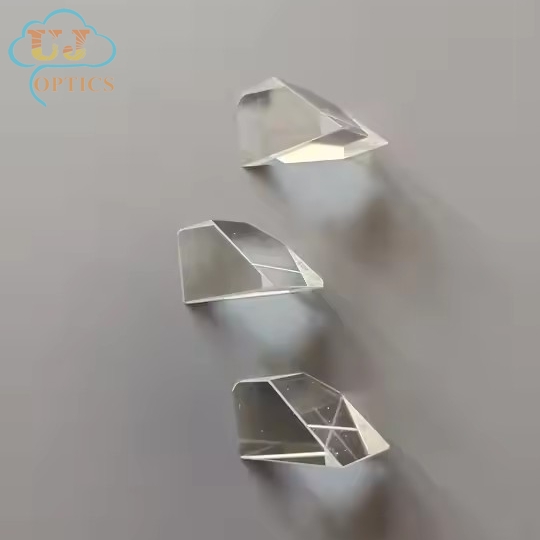

MICRO PRISM
Micro prisms are very small versions of optical prisms, typically 0.1-5mm in size. They are used with optical fibers,
to direct light from one channel to another accurately. They are also used in photography as a focusing aid.

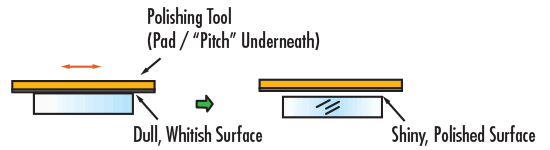

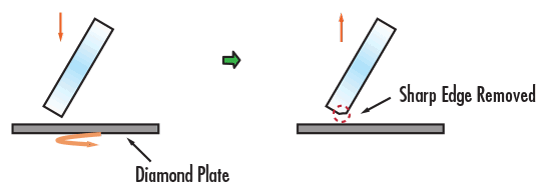

Prism Manufacturing Process
| Product Name | micro prism |
| Dimensions | 0.2-200mm |
| Dimensional Tolerance | ±0.01mm |
| Material | N-BK7 Fused Silica 7980 JGS1 JGS2 Custom |
| Flatness | 1/4 Lambda |
| Angle Accuracy | ±3′ |
| Surface quality | 20/10~60/40 |
| Bevel(Face Width@45°） | ±0.2mm |
| Clear aperture | ＞90% |
| Coating | Uncoated, or customized |
