Core Features

1. Optical performance: Transmitting wavelength range of 600-1200nm (customizable coating cutoff wavelength, such as cutoff below 575nm).

     High transmittance: The six optical polishing has a transmittance of 90-95% and supports total reflection light guidance.

     Refractive index: 1.762-1.770, birefringence: 0.008-0.010

2. Physical and Chemical Properties

     High hardness (Mohs hardness 9) and scratch resistance, superior to quartz and K9 glass.

     High temperature resistance (melting point 2050 ℃) and corrosion resistance, suitable for high-energy laser environments

     Excellent thermal conductivity, fast heat dissipation, and improved equipment safety.

3. Structural Design

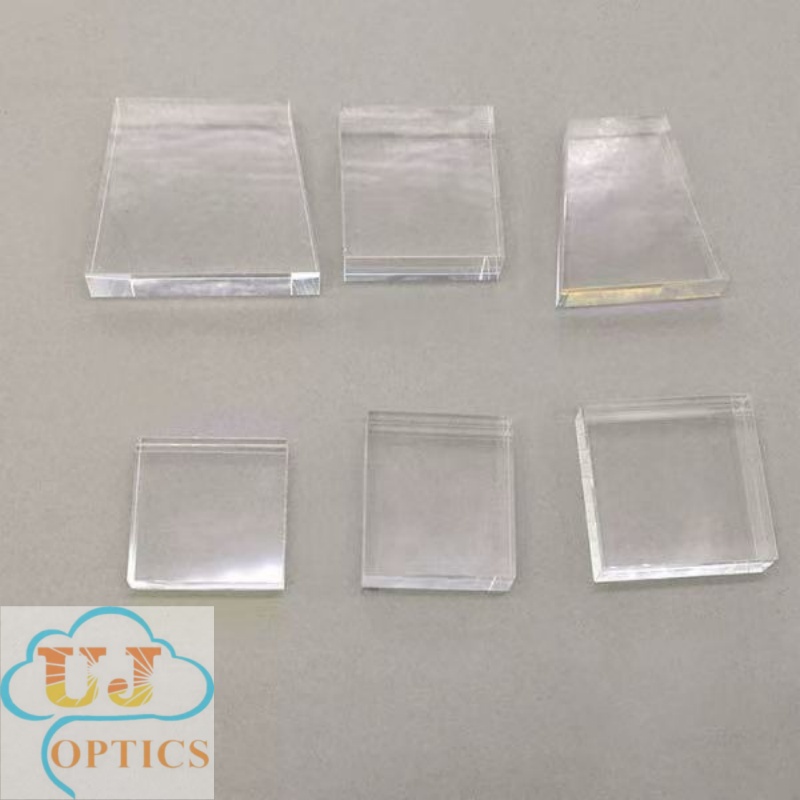

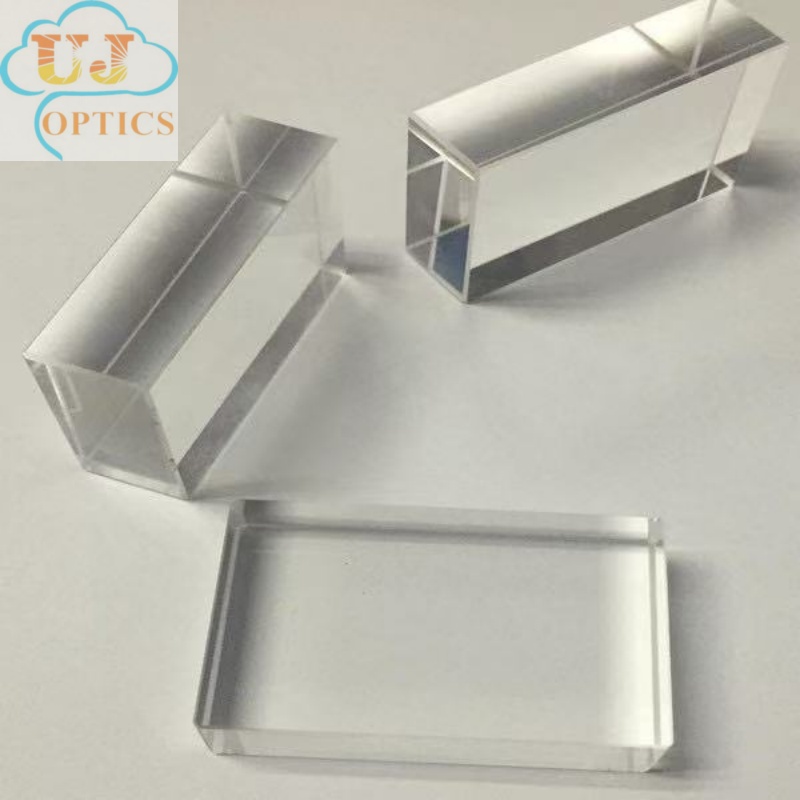

     The common shapes are rectangular, rectangular, or conical, with six sided polishing to ensure precise optical path.

     Can be coated with anti reflective film or cut-off filter film (such as 808nm milk light coating).

Typical Applications

Beauty equipment: IPL laser beauty device, freezing point hair removal device, etc., uniformly project laser onto the skin through a light guide block.

Medical laser: used for OPT, DPL and other equipment, resistant to 2000W high-power laser.

Industrial optics: used as an infrared window, photomask material, or semiconductor substrate.

Precautions

Cleaning and maintenance: Use a soft cleaning cloth and specialized cleaning agent to clean and avoid scratching the surface.

Storage environment: Store in a dry, well ventilated environment to prevent moisture and mold.

Usage: During use, avoid severe vibration and collision to avoid affecting its optical performance.

Please tell us the material, size, laser power, application before quote.
