DETAILS

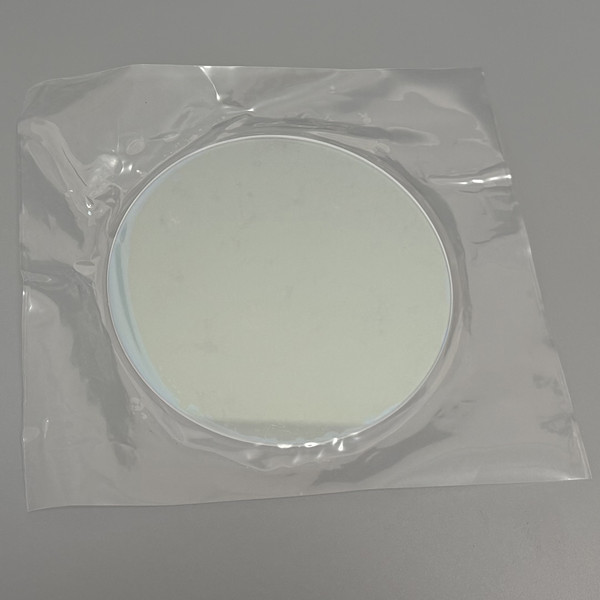

Fused silica glass D134x3mm optical protective window
Main role is to block debris splash, to prevent spatter injury laser focus lens.
Both sides plated high damage threshold (>15J/cm2) antireflection coating to reduce reflections.
| Fused silica glass D134x3mm optical protective window Parameters | |
|---|---|
| Material | Fused Silica |
| Lens Diameter | 134mm ±0.1mm |
| Edge Thickness | 3.0mm ±0.1mm |
| Laser type | 1064nm (BBAR 1020nm-1080nm) |
| Optical Coating | Both sides AR/AR@1064nm(1020nm-1080nm) |
| Application | fiber laser welding machine |
| Laser power | 500w-6000w |
Please tell us the material, size, laser power, application before quote.
